Customer.io Source

Ingest your event data from Customer.io into RudderStack.

5 minute read

Customer.io is a popular marketing platform for sending targeted emails and push and SMS notifications to improve customer engagement and thereby the overall conversion rate.

You can send your Customer.io events by adding a webhook that points to RudderStack. These events include email-related actions such as email delivered, opened, bounced, and more.

This guide will help you set up Customer.io as a source in RudderStack.

Get started

Go to your RudderStack dashboard and click Add Source. From the list of Event Streams sources, select Customer.io.
Assign a name to your source and click Continue.

To connect this source to a RudderStack warehouse destination, the source name should match the name of your warehouse schema.

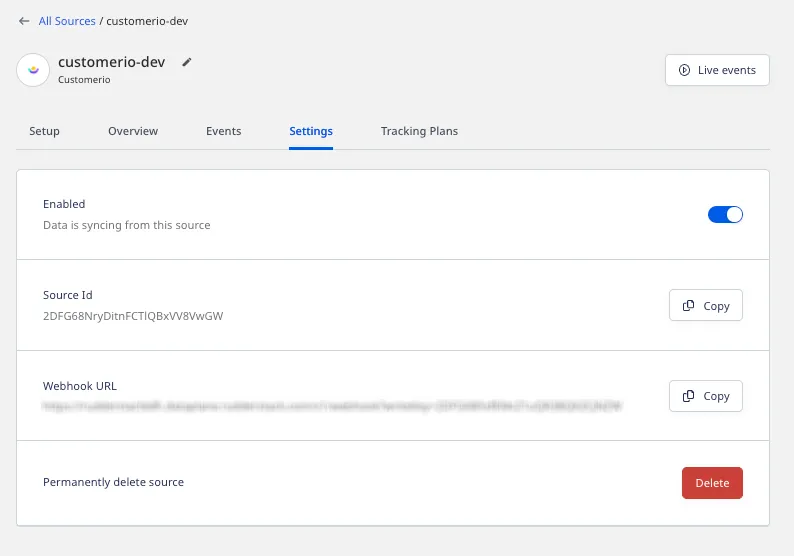

Your Customer.io source is now configured. Go to the Settings tab of the source and note the Webhook URL:

Go to your Customer.io dashboard. From the sidebar, go to the Integrations page and look for Reporting Webhooks:

Click Add Webhook and add the webhook URL obtained in Step 3. The URL should be of the following format:

<DATA_PLANE_URL>/v1/webhook?writeKey=<WRITE_KEY>

Make sure to:
Replace <DATA_PLANE_URL> with the data plane URL associated with your RudderStack workspace.
Add the source write key obtained in Step 3 as a query parameter to the URL. This is required to prevent the webhook from failing.
Validate the endpoint before proceeding.

Save the webhook.

Supported events

The following sections list the Customer.io event types supported by RudderStack.

Common data mappings

The common data mappings for each of the supported event types is listed in the following table:

Customer.io property	RudderStack property
`data.customer_id`	`userId`
`data.event_id`	`properties.eventId`
`data.identifiers.id`	`userId`

Email events

RudderStack supports the following Customer.io email events:

Email Event	Description
`Delivered`	The delivery provider’s report that the email was delivered to the inbox of the recipient.
`Opened`	An email was opened by the recipient.
`Clicked`	A tracked link in an email was clicked by the recipient/customer.
`Bounced`	The delivery provider’s report that it was unable to deliver the email to the recipient.
`Spammed`	An email was marked as spam by the recipient.
`Subscribed`	The customer subscribed via a particular email.
`Unsubscribed`	The customer unsubscribed via a particular email.
`Failed`	The email was not successfully delivered to the recipient.
`Dropped`	The email was not sent as the recipient was suppressed.
`Attempted`	Customer.io retried sending the email to the email provider.
`Converted`	The conversion goal attributed to the email was matched.
`Sent`	The email was successfully sent to the recipient.
`Drafted`	The sender created an email draft.

The supported property mappings in addition to the common mappings listed above are as follows:

Customer.io property	RudderStack property
`data.action_id`	`properties.actionId`
`data.broadcast_id`	`properties.broadcastId`
`data.delivery_id`	`properties.deliveryId`
`data.href`	`properties.link.url`
`data.link_id`	`properties.link.id`
`data.recipient`	`context.traits.email`
`data.subject`	`properties.emailSubject`
`data.failure_message`	`properties.reason`
`data.campaign_id`	`properties.campaignId`
`data.content_id`	`properties.contentId`
`data.newsletter_id`	`properties.newsletterId`

Customer events

RudderStack supports the following Customer.io customer events:

Customer Event	Description
`Subscribed`	The customer was subscribed to a campaign.
`Unsubscribed`	The customer was unsubscribed from a campaign.

The supported property mappings in addition to the common mappings listed above is shown:

Customer.io property	RudderStack property
`data.email_address`	`context.traits.email`

SMS events

RudderStack supports the following Customer.io SMS events:

SMS Event	Description
`Failed`	The SMS could not be sent to the delivery provider.
`Click`	The recipient tapped the link present in the SMS notification.
`Sent`	The SMS notification was sent successfully.
`Attempted`	The SMS was attempted for delivery.
`Drafted`	The SMS notification was drafted.
`Delivered`	The SMS notification was delivered to the recipient.
`Converted`	The conversion goal attributed to the SMS was matched.
`Bounced`	The delivery provider’s report that it was unable to deliver the SMS to the recipient.

The supported property mappings in addition to the common mappings listed above are as follows:

Customer.io property	RudderStack property
`data.action_id`	`properties.actionId`
`data.broadcast_id`	`properties.broadcastId`
`data.delivery_id`	`properties.deliveryId`
`data.href`	`properties.link.url`
`data.recipient`	`context.traits.email`
`data.failure_message`	`properties.reason`
`data.campaign_id`	`properties.campaignId`
`data.link_id`	`properties.link.id`

Push notification events

RudderStack supports the following Customer.io push notification events:

Push Event	Description
`Failed`	The push notification could not be sent to the delivery provider.
`Click`	The recipient tapped the link present in the push notification.
`Sent`	A push notification was sent.
`Attempted`	A push notification was attempted unsuccessfully.
`Drafted`	A push notification was drafted.
`Opened`	A push notification was opened by the recipient.
`Converted`	The conversion goal attributed to the push notification was matched.
`Bounced`	An invalid device token was reported by the delivery provider.
`Dropped`	The push notification was not sent to the recipient as the device token bounced.

The supported property mappings in addition to the common mappings listed above are as follows:

Customer.io property	RudderStack property
`data.action_id`	`properties.actionId`
`data.broadcast_id`	`properties.broadcastId`
`data.delivery_id`	`properties.deliveryId`
`data.href`	`properties.link.url`
`data.link_id`	`properties.link.id`
`data.recipient`	`context.traits.email`
`data.device_id`	`properties.deviceId`
`data.failure_message`	`properties.reason`
`data.recipients`	`properties.recipients`
`data.campaign_id`	`properties.campaignId`
`data.device_platform`	`properties.devicePlatform`

Webhook events

RudderStack supports the following Customer.io webhook events:

Webhook Event	Description
`Failed`	The webhook payload failed and was not sent to the recipient.
`Click`	The link in the webhook payload was clicked by the recipient.
`Sent`	A webhook payload was sent from Customer.io.
`Attempted`	A webhook event was attempted unsuccessfully and would be retried.
`Drafted`	A webhook draft was created by the sender.

The supported property mappings in addition to the common mappings listed above are as follows:

Customer.io property	RudderStack property
`data.action_id`	`properties.actionId`
`data.broadcast_id`	`properties.broadcastId`
`data.delivery_id`	`properties.deliveryId`
`data.href`	`properties.link.url`
`data.link_id`	`properties.link.id`
`data.recipient`	`context.traits.email`
`data.failure_message`	`properties.reason`

Slack events

RudderStack supports the following Customer.io Slack events:

Slack Event	Description
`Failed`	The Slack message failed and was not delivered to the recipient.
`Click`	The recipient clicked the link in the Slack message.
`Sent`	A Slack message was successfully sent to the recipient.
`Attempted`	A Slack message was attempted unsuccessfully and would be retried.
`Drafted`	A Slack message was drafted by the sender.

The supported property mappings in addition to the common mappings listed above are as follows:

Customer.io property	RudderStack property
`data.action_id`	`properties.actionId`
`data.broadcast_id`	`properties.broadcastId`
`data.delivery_id`	`properties.deliveryId`
`data.href`	`properties.link.url`
`data.link_id`	`properties.link.id`
`data.recipient`	`context.traits.email`
`data.failure_message`	`properties.reason`
`data.campaign_id`	`properties.campaignId`

The following image highlights the setup in the Customer.io dashboard:

Event transformation

The Customer.io webhook events are ingested into RudderStack after converting them into the RudderStack event format. The customer_id set by Customer.io is set as userId. In cases where Customer.io does not send the customer_id, the email address of the user is set as anonymousId.
